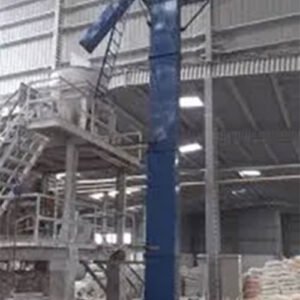

Bucket Elevator Conveyor

Bucket Elevator Conveyor

Technical Specifications (Customizable)

Elevator Height: As per plant requirement
Capacity: Designed as per material flow rate
Bucket Material: MS / SS / Plastic
Bucket Volume: Customized
Belt / Chain Type: As per application
Drive System: Geared motor / Helical gearbox
Power Supply: Three phase
Casing Material: Mild Steel / Stainless Steel
Discharge Type: Centrifugal or gravity

All specifications are engineered according to site and material requirements.

Description

Bucket Elevator Conveyor Supplier and Manufacturer in India

A Bucket Elevator Conveyor is a vertical material handling system designed to lift bulk materials efficiently from a lower level to a higher level. It is widely used in industries where vertical transportation of powders, granules, and bulk solids is required in a compact space. Bucket elevators offer high capacity, continuous operation, and minimal spillage, making them an essential solution for modern industrial material handling.

At Tech Trek Engineering, a bucket elevator conveyor supplier and manufacturer in India, we design and manufacture robust bucket elevators that are customized according to material characteristics, capacity requirements, and plant layout. Our bucket elevators are engineered for reliability, long service life, and consistent performance in demanding industrial environments.

What is a Bucket Elevator Conveyor?

A bucket elevator is a vertical conveyor system consisting of buckets attached to a belt or chain that moves around head and tail pulleys or sprockets. The buckets scoop material from the inlet point, carry it vertically, and discharge it at the top through centrifugal or gravity discharge.

Bucket elevators are ideal for handling bulk materials such as grains, cement, sand, coal, fertilizer, and similar products.

Working Principle:

The working principle of a bucket elevator is as follows:

  1. Material is fed into the inlet hopper at the bottom of the elevator.
  2. Buckets attached to a belt or chain scoop the material.
  3. The drive unit moves the belt or chain upward.
  4. Buckets carry the material vertically to the discharge point.
  5. Material is discharged at the top by centrifugal force or gravity.
  6. Empty buckets return to the inlet point to repeat the cycle.

This continuous operation allows efficient vertical material transfer with minimal space usage.

Key Features of Bucket Elevator:

  • Efficient vertical material handling
  • Compact design with minimal floor space requirement
  • High conveying capacity
  • Continuous and smooth operation
  • Reduced material spillage
  • Strong and durable construction
  • Low power consumption
  • Customizable design

Types of Bucket Elevator Conveyor:

Based on application and material characteristics, bucket elevators can be designed as:

  • Belt type bucket elevator
  • Chain type bucket elevator
  • Centrifugal discharge bucket elevator
  • Continuous discharge bucket elevator
  • Heavy-duty bucket elevator

The selection depends on material flow behaviour, capacity, and operating conditions. For a full explanation of discharge types and how to choose, see our bucket elevator guide, and for compact layouts, our Z-type bucket elevator.

Bucket and Material Options:

We offer different bucket and construction options to suit various applications:

  • Buckets made from Mild Steel, Stainless Steel, or Plastic
  • Belts made from rubber, PVC, or fabric-reinforced materials
  • Chains designed for heavy-duty applications
  • Wear-resistant and corrosion-resistant materials

Bucket size and spacing are selected based on material density and required capacity.

MS, SS and Plastic Bucket Elevator Options:

The bucket material is chosen to match your material, environment and hygiene needs:

  • Mild steel (MS) buckets: a strong, cost-effective choice for heavy and abrasive loads such as cement, coal and sand.
  • Stainless steel (SS) buckets: for hygiene and corrosion resistance in food, pharmaceutical and chemical applications.
  • Plastic (polyethylene, HDPE) buckets: lightweight and corrosion-resistant, used with materials such as fertilizers and chemicals.

Tell us your material, capacity and lift height and we will recommend the right bucket material and configuration. For the complete range, see our bucket elevator systems.

Applications of Bucket Elevator:

Bucket elevators are widely used in:

  • Cement plants
  • Food grain and flour mills
  • Fertilizer plants
  • Power plants and coal handling
  • Chemical industries
  • Sugar plants
  • Mining and mineral processing units

They are ideal for vertical transportation of powders, granules, and bulk solids.

Advantages of Bucket Elevator:

  • Efficient vertical conveying solution
  • High capacity with low energy consumption
  • Minimal material loss
  • Long service life
  • Suitable for continuous operation
  • Reduced manpower requirement
  • Reliable performance

Customization Options:

We provide complete customization, including:

  • Elevator height and capacity
  • Bucket size and spacing
  • Belt or chain selection
  • Inlet and discharge design
  • Dust-tight casing options
  • Speed control using VFD

Related reading: why industries trust a reliable bucket conveyor manufacturer for vertical material transport.

Bucket Elevator – FAQs:

Q1. What materials can be handled using a bucket elevator?
Bucket elevators are suitable for powders, granules, and bulk materials such as grains, cement, sand, coal, and fertilizer.

Q2. What is the difference between belt and chain bucket elevators?
Belt bucket elevators are used for lighter materials, while chain bucket elevators are suitable for heavy-duty and abrasive materials. See our bucket elevator guide for a detailed comparison.

Q3. How is material discharged from a bucket elevator?
Material is discharged either by centrifugal force or gravity, depending on the design.

Q4. Can bucket elevators be used for continuous operation?
Yes, they are designed for continuous industrial operation.

Q5. What factors affect the price of a bucket elevator?
Price depends on elevator height, capacity, bucket type, belt or chain selection, and material of construction.

Q6. Are bucket elevators suitable for outdoor installation?
Yes, they can be designed for outdoor use with weather-resistant construction.

Q7. Do you provide installation and commissioning support?
Yes, we provide technical guidance and support during installation and commissioning.

Q8. Which bucket material is best: mild steel, stainless steel or plastic?
Mild steel suits heavy, abrasive loads such as cement, coal and sand. Stainless steel suits hygienic or corrosive applications such as food, pharmaceutical and chemical plants. Plastic (polyethylene) buckets are lightweight and corrosion-resistant, used with materials such as fertilizers and chemicals. We recommend the right one after reviewing your material and conditions.
