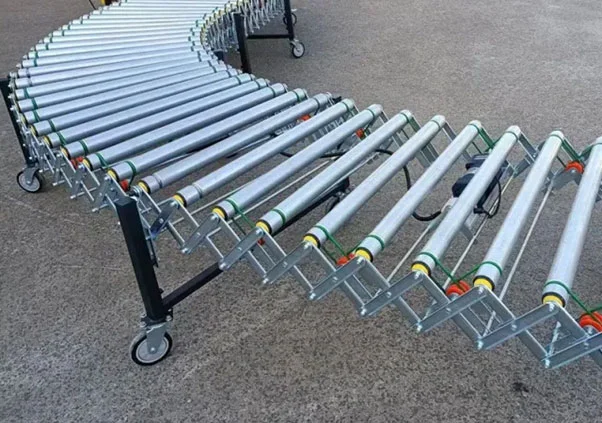

Flexible Roller Conveyor

Flexible Roller Conveyor

Technical Specifications (Customizable)

Roller Diameter: 38 mm to 50 mm
Roller Width: As per conveyor width
Roller Spacing: Customized based on product size
Expanded Length: As per operational requirement
Conveyor Width: 400 mm to 800 mm
Frame Material: Mild Steel / Galvanized Steel
Operation: Gravity / Manual push
Finish: Powder-coated / Galvanized

All specifications are customized to ensure smooth operation and durability.

Description

Flexible Expandable Roller Conveyor System Manufacturer in India

Introduction:

A Flexible Roller Conveyor is a versatile and mobile material handling system designed to transport cartons, boxes, and packages in areas where the layout frequently changes. Unlike fixed conveyors, flexible roller conveyors can be expanded, curved, contracted, or repositioned easily, making them ideal for dynamic loading and unloading operations.

Flexible roller conveyors are widely used in warehouses, logistics centers, courier hubs, dispatch areas, and e-commerce fulfilment facilities. At Tech Trek Engineering, a flexible expandable roller conveyor system manufacturer in India, we manufacture robust and reliable flexible roller conveyors that are engineered for ease of use, durability, and smooth product flow.

What is a Flexible Roller Conveyor?

A flexible roller conveyor is a gravity-based conveyor system made of multiple roller sections connected by flexible joints. The conveyor can be stretched to the required length and curved to match the site layout. When not in use, it can be compacted and stored easily.

These conveyors typically operate without motors and use gravity or manual push to move products, making them a cost-effective and highly adaptable solution.

Working Principle:

The working principle of a flexible conveyor roller is simple and efficient:

  1. The conveyor is extended and positioned as per the loading or unloading requirement.
  2. Products are placed on the rollers at the infeed end.
  3. A slight incline or manual push allows products to move forward.
  4. The free-rotating rollers enable smooth movement.
  5. Products reach the discharge end for sorting, packing, or loading.

The flexible joints allow the conveyor to follow curved or irregular paths.

Key Features of Flexible Conveyor Roller:

  • Expandable and contractible design
  • Easily adjustable length and layout
  • Can be curved to suit site conditions
  • Mobile and lightweight structure
  • No power requirement (gravity operated)
  • Quick installation and relocation
  • Low maintenance cost
  • Ideal for temporary or seasonal operations

Types of Flexible Roller Conveyors:

Based on application and load requirements, flexible roller conveyors can be designed as:

  • Gravity flexible roller conveyor
  • Heavy-duty flexible roller conveyor
  • Flexible roller conveyor with side guides
  • Flexible conveyor with adjustable height
  • Flexible roller conveyor with brakes

Each design is customized based on product size and operating conditions.

Roller Options:

We provide different roller options to match application needs:

  • Mild steel rollers
  • PVC rollers
  • Galvanized rollers
  • Nylon rollers
  • Heavy-duty rollers with precision bearings

Roller diameter and spacing are selected based on load weight and carton size.

Applications of Flexible Roller Conveyors:

Flexible roller conveyors are widely used in:

  • Warehouses and distribution centers
  • Courier and logistics hubs
  • Truck and container loading/unloading
  • Dispatch and sorting areas
  • E-commerce fulfilment centers
  • Packaging and packing zones

They are ideal for handling cartons, boxes, totes, and lightweight packages.

Flexible Expandable Roller Conveyor System for Loading and Dispatch:

A flexible expandable roller conveyor system can be stretched to the length you need, curved to follow the site layout, and compacted for storage when it is not in use. Adjustable-height legs, side guides, end stops and lockable wheels let your team position it quickly at a truck, container or dispatch bay and move it again when the layout changes.

It is widely used for truck and container loading and unloading, courier and logistics hubs, and temporary or seasonal operations. For permanent dock installations, see our truck loading conveyor, and for fixed non-powered lines, our gravity roller conveyor.

Advantages of Flexible Conveyor Roller:

  • Highly adaptable to changing layouts
  • Saves space when not in use
  • Quick deployment for temporary operations
  • No electricity required
  • Reduces manual lifting and fatigue
  • Improves loading and unloading efficiency
  • Cost-effective solution

Customization Options:

We offer full customization, including:

  • Conveyor width and length
  • Roller material and diameter
  • Adjustable height legs
  • Side guides and end stops
  • Lockable wheels for mobility
  • Integration with fixed conveyors

Flexible Conveyor Roller– FAQs:

Q1. What products are suitable for a flexible conveyor roller?
Cartons, boxes, totes, and lightweight packages with flat bottoms are ideal.

Q2. Does a flexible roller conveyor require electricity?
No, it operates using gravity or manual force. If you need motor-driven movement, see our powered roller conveyor.

Q3. Can the conveyor be curved?
Yes, flexible roller conveyors can be curved to suit the site layout.

Q4. Is it suitable for heavy loads?
Standard models handle light to medium loads; heavy-duty versions are available for higher loads.

Q5. What factors affect the price of a flexible conveyor roller?
Price depends on conveyor width, length, roller type, load capacity, and customization.

Q6. Is the conveyor easy to move?
Yes, it is lightweight and often provided with wheels for easy movement.

Q7. Do you provide installation support?
Yes, we provide guidance for installation and proper usage.

Q8. What is a flexible expandable roller conveyor system?
It is a gravity-based roller conveyor made of roller sections joined by flexible joints, so it can be extended to the length you need, curved to suit the layout, and compacted for storage. It moves cartons, boxes and totes by gravity or a manual push, with no electricity required.
