Description
Introduction:
A Z Type Bucket Elevator is a specialized material handling system designed to lift materials vertically and then transfer them horizontally in a compact “Z” configuration. It is widely used where gentle handling, precise discharge, and space optimization are required. Z type bucket elevators are especially popular in food, FMCG, agriculture, and pharmaceutical industries because they minimize product damage and spillage while maintaining high efficiency.
At Tech Trek Engineering, we design and manufacture Z type bucket elevators that are robust, hygienic, and fully customized to suit material characteristics, capacity requirements, and plant layout. Our systems are engineered for smooth operation, long service life, and reliable performance in continuous industrial applications.

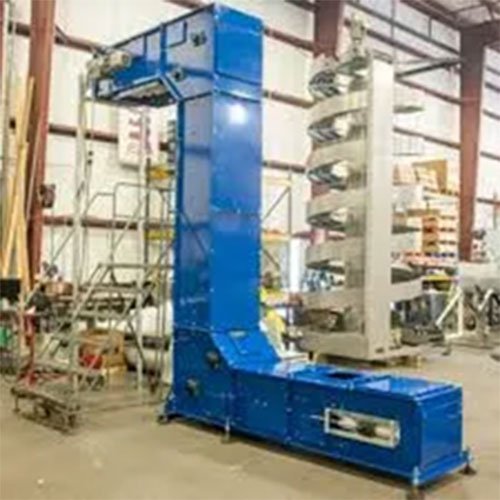

What is a Z Type Bucket Elevator?
A Z type bucket elevator is a bucket-based conveying system arranged in a “Z” shape, consisting of:
- A horizontal infeed section
- A vertical lifting section
- A horizontal discharge section
Buckets mounted on a belt or chain pick up material at the infeed, lift it vertically, and discharge it gently at the outlet. This design allows elevation change with controlled material flow and minimal breakage.
Working Principle:
The working principle of a Z type bucket elevator is based on continuous bucket movement:
- Material is fed into the infeed hopper at the horizontal section.
- Buckets scoop or receive the material.
- The belt or chain carries the buckets upward in the vertical section.
- Buckets move into the upper horizontal section.
- Material is discharged smoothly by gravity at the outlet.
- Empty buckets return to the infeed point to repeat the cycle.
This gentle conveying method makes Z type bucket elevators ideal for fragile and free-flowing materials.
Key Features of Z Type Bucket Elevator:
- Compact Z-shaped design
- Gentle material handling with minimal breakage
- Efficient vertical and horizontal conveying
- Low spillage and dust generation
- Continuous and smooth operation
- Space-saving installation
- Strong and durable construction
- Customizable design
Types of Z Type Bucket Elevators:
Based on application and material type, Z type bucket elevators can be designed as:
- Belt type Z bucket elevator
- Chain type Z bucket elevator
- Food-grade Z bucket elevator
- Heavy-duty Z bucket elevator
- Z bucket elevator with multiple discharge points
The selection depends on capacity, material flow behaviour, and hygiene requirements.
Bucket and Material Options:
We offer various bucket and construction options:
- Bucket Material: Plastic (food-grade), Mild Steel, Stainless Steel
- Bucket Type: Deep buckets, shallow buckets, customized buckets
- Belt Options: Rubber belt, PVC belt, food-grade PU belt
- Chain Options: Heavy-duty industrial chains (for abrasive materials)
Bucket size and spacing are selected based on required capacity and material density.
Applications of Z Type Bucket Elevator:
Z type bucket elevators are widely used in:
- Food processing industries
- FMCG and consumer goods handling
- Grain, seed, and agricultural products
- Confectionery and snack processing
- Pharmaceutical industries
- Chemical and powder handling units
- Packaging and batching systems
They are ideal for handling grains, pulses, seeds, snacks, pellets, powders, and small components.
Advantages of Z Type Bucket Elevator:
- Gentle handling of fragile materials
- Compact design with efficient space usage
- Low product damage and wastage
- Continuous and reliable operation
- Reduced manual handling
- Easy integration with other equipment
- Suitable for hygienic applications
Customization Options:
We provide extensive customization options, including:
- Elevator height and layout
- Bucket size, type, and spacing
- Belt or chain selection
- Food-grade or heavy-duty construction
- Variable speed control using VFD
- Multiple inlet or discharge arrangements
Z Type Bucket Elevator – FAQs:
Q1. What materials are suitable for a Z type bucket elevator?
Z type bucket elevators are suitable for grains, seeds, snacks, powders, pellets, and fragile materials.
Q2. Why is a Z type bucket elevator preferred for food industries?
Because it offers gentle handling, low spillage, and can be designed with food-grade materials.
Q3. What is the difference between a standard bucket elevator and a Z type bucket elevator?
A standard bucket elevator mainly provides vertical lift, while a Z type bucket elevator provides both vertical and horizontal conveying.
Q4. Can Z type bucket elevators be customized for different capacities?
Yes, capacity is fully customizable based on bucket size, speed, and layout.
Q5. What factors affect the price of a Z type bucket elevator?
Price depends on elevator height, bucket material, belt or chain type, capacity, and customization.
Q6. Is speed control available?
Yes, variable speed control can be provided using VFD systems.
Q7. Do you provide installation and commissioning support?
Yes, we provide complete technical support during installation and commissioning.
